“Ultimate Floors is proud to be Pliteq’s largest distributor in Southern California. Pliteq, through its various acoustical products, is the industry leader in sound solutions flooring technology.”
Underlayment for all Sound Solution flooring types
flooring types.
GenieMat RST02
Sound Control Underlayment
GenieMat RST05
Sound Control Underlayment
GenieMat RST02
Sound Control Underlayment
IT’S NOT MAGIC, IT’S ENGINEERING®
Impact and Airborne Sound Control
Features & Benefits
- Mold, bacteria, fungi, and water resistant.
- Exceeds pass criteria for point load test for crack isolation membrane (ANSI 118.12).
- Meets requirements for VOC emissions (IAQ test, ASTM D5116.
- Qualifies for LEED® points.
- Floorscore® certified.
- Complete floor covering system warranty available.
GENIEMAT® RST
UNDERLAYMENT FOR REDUCED SOUND TRANSMISSION
FROM THE INVENTOR OF THE PATENTED TECHNOLOGY (US 6920723, US RE41945, CA 2398262) FOR RECYCLED RUBBER USED FOR IMPACT SOUND INSULATION, DIRECTLY BELOW FLOOR COVERINGS.
It is used when superior sound control is required in multi-family housing, high-rises, or commercial buildings and protects ceramic tile, porcelain and stone from substrate cracks.
Engineered for direct adhered floor coverings such as tile, stone, wood, and vinyl floor coverings.
Tile – All products rated for minimum of commercial use.
Wood – GenieMat FASadhesives offer superior bonding strength.
Vinyl – One-step method provides superior sound control for resilient floor coverings.
GENIEMAT® Product Specifications
| PRODUCT | ROLL SIZE | AVERAGE DYNAMIC STIFFNESS (BS EN 29052) | TYPE A HARDNESS (ASTM D2240) | TCNA ROBINSON TEST WITH TILE (ASTM C627) |
|---|---|---|---|---|
| GenieMat RST02 | 4′ x 75′ | 157 MN/m 3 | 40 durometer | Extra heavy commercial |
| GenieMat RST05 | 4′ x 30′ | 105 MN/m 3 | 40 durometer | Moderate commercial |
| GenieMat RST10 | 4′ x 15′ | 64 MN/m 3 | 40 durometer | Light commercial |
| GenieMat RST12 | 4′ x 15′ | 60 MN/m 3 | 40 durometer | Light commercial |
| GenieMat RST15 | 4′ x 15′ | 54 MN/m 3 | 40 durometer | Light commercial |
Rubber is the best vibration isolation material
POSITIVE ADHESIVE LOCK
For very high bond strengths with adhered floor coverings.
Approved for Porcelain Tile, Vinyl Sheet, Luxury Vinyl Plank,
Ceramic Tile and all types of Wood Floor
Fully Warranted Vinyl Plank System
Fully Warranted Ceramic Tile System
Geniemat® RST Acoustical Test Data
Impact Insulation System
6" Concrete Slab
8" Concrete Slab

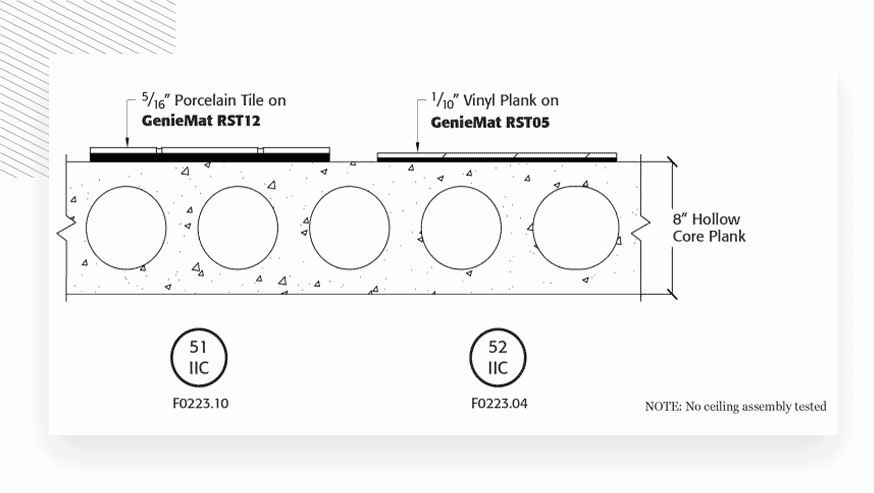

Hollow Core Plank
Composite Deck
Open Web Truss
Cross Laminated Timber

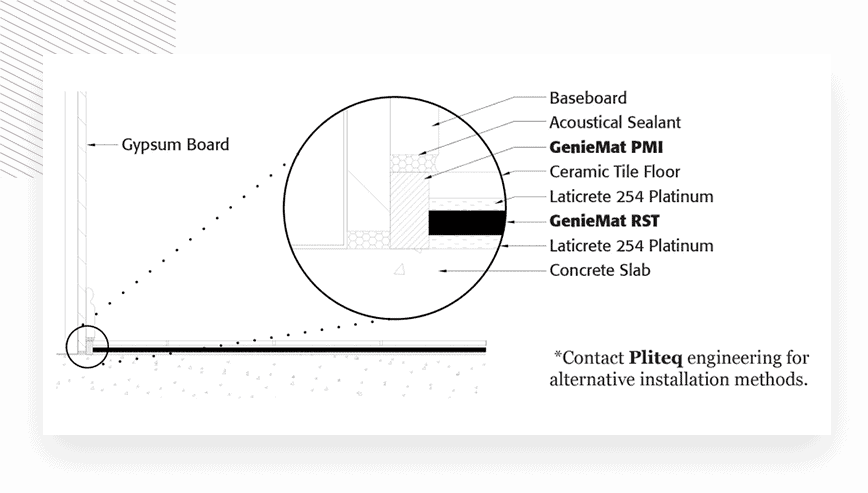

Impact Sound Reduction when installed
Beneath Ceremic Tile
floor coverings in reducing impact sound transmission through concrete floors
(6” concrete slab with tile).
Acoustical Testing Standards - Wood Structures
| test report number | product | finish floor | structure | subfloor | ceiling type | stc rating (astm e90) | iic rating (astm e492) |
|---|---|---|---|---|---|---|---|
| G0535.08 | GenieMat® RST02PS | Vinyl Plank | Open Web Truss | 3/4” Gypsum,3/4″OSB | 1/2″RC Deluxe,5/8” Type C GWB | 60 | 50 |
| G0535.07 | GenieMat RST02PS | Wood | Open Web Truss | 3/4” Gypsum,3/4” OSB | 1/2” RC Deluxe,5/8” Type C GWB | 61 | 50 |
| G0535.01 | GenieMat RST02PS | Porcelain Tile | Open Web Truss | 3/4” Gypsum,3/4” OSB | 1/2” RC Deluxe,5/8” Type C GWB | 62 | 51 |
| F4832.18 | GenieMat RST02 | Porcelain Tile | Engineered Joist | 1/2” Plywood,3/4” OSB | GenieClip RST,2x 5/8” Type C GWB | 59 | 55 |
| F5500.03 | GenieMat RST02 | Vinyl Plank | Engineered Joist | 1/2” Plywood,3/4” OSB | GenieClip RST,2x 5/8” Type C GWB | 61 | 60 |
| F4832.14 | GenieMat RST02 | Wood | Engineered Joist | 1/2” Plywood,3/4” OSB | GenieClip RST,2x 5/8” Type C GWB | 58 | 61 |
| F2761.08 | GenieMat RST02 | Wood | CLT | None | GenieClip RST,5/8” Type C GWB | 54 | 50 |
| F2761.09 | GenieMat RST12 | Porcelain Tile | CLT | None | GenieClip RST,5/8” Type C GWB | 55 | 51 |
| E5958.07 | GenieMat RST05 | Vinyl Plank | CLT | None | 12″ Wire Suspendedon GenieClip LB,5/8” Type C GWB | 58 | 58 |
| 5013143 7013216 | GenieMat RST02 | Vinyl Plank | 2×10 Solid Wood Joist | 5/8” Plywood,1/2” Plywood | GenieClip RST,1/2” Type C GWB | 55 | 50 |
| 5013136 7013208 | GenieMat RST02 | Ceramic Tile | 2×10 Solid Wood Joist | 5/8” Plywood, 1/2” Plywood | GenieClip RST, 1/2” Type C GWB | 58 | 52 |
Test Results
Acoustical Testing Standards - Concrete & Steel Structures
| test report number | product | finish floor | structure | subfloor | ceiling type | stc rating (astm e90) | iic rating (astm e492) |
|---|---|---|---|---|---|---|---|
| G9222.01 | None | Vinyl Plank | 8″ Concrete Slab | None | None | 55 | 43 |
| G9222.04 | GenieMat® RST02 | Vinyl Plank | 8″ Concrete Slab | None | None | 57 | 53 |
| E8741.01 | GenieMat RST12 | Ceramic Tile | 8″ Concrete Slab | None | None | 57 | 53 |
| F8530.06 | GenieMat RST05 | Wood | 8″ Concrete Slab | None | None | 55 | 56 |
| E2783.02 | GenieMat RST05 | Porcelain Tile | 6″ Concrete Slab | None | None | 54 | 50 |
| F9365.09 | GenieMat RST02PS | Vinyl Plank | 6″ Concrete Slab | None | None | 51 | 52 |
| G2953.07 | GenieMat RST05 | Wood | 6″ Concrete Slab | None | None | 52 | 53 |
| F0223.10 | GenieMat RST12 | Porcelain Tile | 8″ Hollow Core Plank | None | None | 54 | 51 |
| F0223.04 | GenieMat RST05 | Vinyl Plank | 8″ Hollow Core Plank | None | None | 53 | 52 |
| G3991.07 | GenieMat RST05 | Porcelain Tile | 5 1/2” Trapezoidal Steel Deck | None | GenieClip RST, 5/8” Type C GWB | 56 | 51 |
| G3991.17 | GenieMat RST02 | Wood | 5 1/2” Trapezoidal Steel Deck | None | Furring channel | 53 | 52 |
| F9365.02 | GenieMat RST05 | Porcelain Tile | 4″ Trapezoidal Steel Deck | None | GenieClip RST, 2x 5/8” Type C GWB | 58 | 51 |
| F5689.07 | GenieMat RST02 | Vinyl Plank | 4″ Trapezoidal Steel Deck | None | GenieClip RST, 5/8” Type C GWB | 54 | 54 |
| F5689.06 | GenieMat RST05 | Wood | 4″ Trapezoidal Steel Deck | None | GenieClip RST, 5/8” Type C GWB | 55 | 54 |
| F5689.18 | GenieMat RST12 | Porcelain Tile | 10″ Steel Joist | 3/4” Structural Concrete Panels | GenieClip RST, 2x 5/8” Type C GWB | 62 | 50 |
| F5689.20 | GenieMat RST02 | Vinyl Plank | 10″ Steel Joist | 3/4” Structural Concrete Panels | GenieClip RST, 2x 5/8” Type C GWB | 60 | 52 |
| F5689.21 | GenieMat RST02 | Wood | 10″ Steel Joist | 3/4” Structural Concrete Panels | GenieClip RST, 2x 5/8” Type C GWB | 60 | 53 |
| F3052.15 | GenieMat RST10 | Porcelain Tile | 16″ Insulated Concrete Form | None | 1/2” Type C GWB | 56 | 51 |
| F3052.14 | GenieMat RST05 | Wood | 16″ Insulated Concrete Form | None | 1/2” Type C GWB | 54 | 53 |
Contact Us
For Your Project Specific Questions
Ultimate Floors ©2022
The information provided is accurate to the best of our knowledge at the time of issue. However, we reserve the right to make changes when necessary without further notification. Suggested application may need to be modified to
confirm with local building codes and conditions. We cannot accept responsibility for products that are not used, or installed, to our specifications. All listed dimensions are nominal.
